Bridge Conference Highlights Digital Delivery, Connecting Communities

U.S. public works businesses such because the Pennsylvania Dept. of Transportation and the Pennsylvania Turnpike Commission are eyeing eventual full adoption of digital supply for initiatives. Whereas the open commonplace of trade basis courses (IFC) is making its method into the civil infrastructure area, businesses are grappling with challenges together with interoperability, proprietary platforms and knowledge trade.

PennDOT launched a initiative together with many pilot initiatives and has achieved the aim of permitting building initiatives to be bid utilizing 3D know-how versus a conventional building plan format by this yr. “It’s gaining natural momentum as we roll it out,” stated Allen Melley, PennDOT chief of digital supply, on the International Bridge Conference in Pittsburgh, held July 14-16. Pennsylvania was the featured state at IBC this yr.

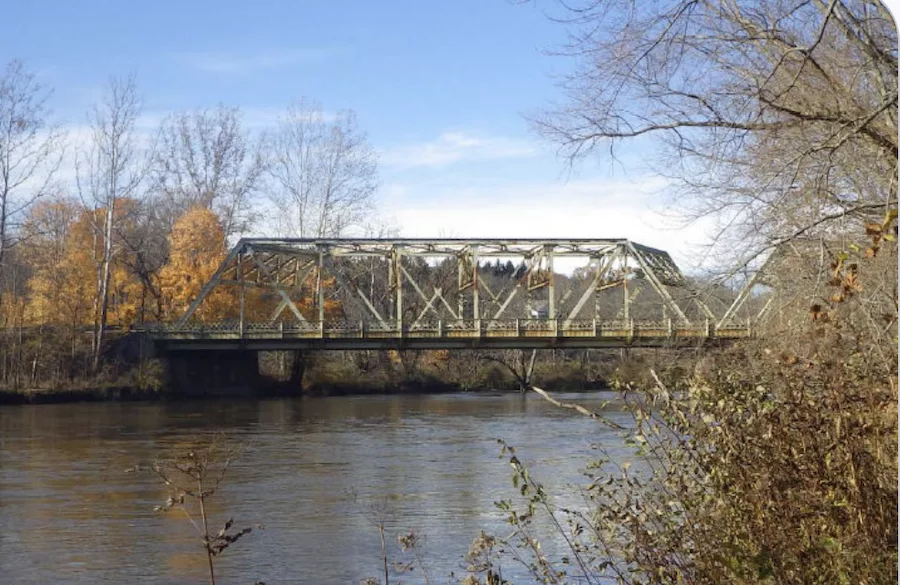

Interoperability between native information and IFC stays a problem. In a single instance, the modeling of a bridge was initially “visually off,” famous Joe Brenner, BIM lead with Michael Baker Worldwide, one of many consultants working with PennDOT. Nevertheless, he famous {that a} bridge challenge on State Route 6 was lately deployed as the primary absolutely model-based contract.

The turnpike authority this spring accomplished a pilot challenge that utilized modeling for bidding by building of a two-span prestressed field beam bridge, stated Dan Rogers, chief bridge engineer with marketing consultant RETTEW.  Classes realized included clearly defining the scope of labor early on, including a 3D process to the contractual language and assembly consistently to deal with studying curves, he added.

Offering the contractor with 2D plans to complement the mannequin helped improve the consolation degree, he famous. “They saved asking, the place’s the geotextile, the waterproofing?” he stated. “They thought the mannequin could be fully detailed.” High quality management inspectors additionally confronted a studying curve with 3D modeling, he famous.

Ryan Rago, the turnpike’s challenge supervisor, added that there have been points with sure proprietary software program packages through the bidding processes for the pilot initiatives.

Future initiatives will mix modeling for freeway and bridge parts, and it’ll finally inform operations and upkeep, and asset administration, he added.

The Metropolis of Pittsburgh is overhauling the way it manages property within the wake of the Fern Hollow Bridge collapse in 2022, stated Zack Workman, town’s chief deputy bridge engineer. “We started revisiting every thing we knew,” he stated. The town commissioned a brand new asset administration program with WSP as marketing consultant.

A bridge stock overhaul discovered points with outdated data, poor entry to plans and even circumstances the place it wasn’t clear who owned what asset, he famous. The town created a brand new bridge upkeep division. Workman famous that the Fern Hole Bridge had 6 in. of paving overlay, not three, including to the general useless weight of the 446-ft-long inflexible metal Ok-frame construction.

Because of the elevated give attention to inspections, town discovered that drainage scuppers on the brand new bridge had been already being compromised by foliage progress, which is now commonly cleaned out, he added.

Bridging Communities

The Interstate 35 project in Austin, Texas, requires eight cap-and-stitch new bridges alongside 4 miles of the freeway when it’s relocated under grade, stated Kasian Warenycia, senior bridge engineer with Arup. These caps will create 30 new acres of public area together with parks, concessions, and a possible transit station.

The design workforce needed to consider the weights of parts that can sit on or use these bridges, resembling bushes, buildings, emergency automobiles, and utilities, he famous. Furthermore, through the projected 100-year design life, these parts will change. Designers envision a utility hall that branches out to facilities as wanted and gained’t require opening up the bridges when these facilities change.

Warenycia stated two-story retail buildings with occupied roofs and 50-ft shade bushes could be among the many commonplace parts to take a seat atop the bridges. Light-weight supplies resembling geofoam will probably be thought-about for the crossings, which is able to make the most of prestressed concrete girders. The bridges will create “tunnel-like circumstances” for the depressed freeway, so points resembling air flow, clearances and evacuation have to be thought-about.

Maybe crucial consideration is group participation, he stated. Alongside the 4 miles, “we contemplate every particular neighborhood’s wants.”
