Ice Chapel Built by Student Duo Rises at University of Notre Dame

When heavy snow and frigid chilly blanketed the College of Notre Dame campus in South Bend, Ind. in current weeks, two senior civil engineering and structure majors noticed the inclement circumstances as a possibility.

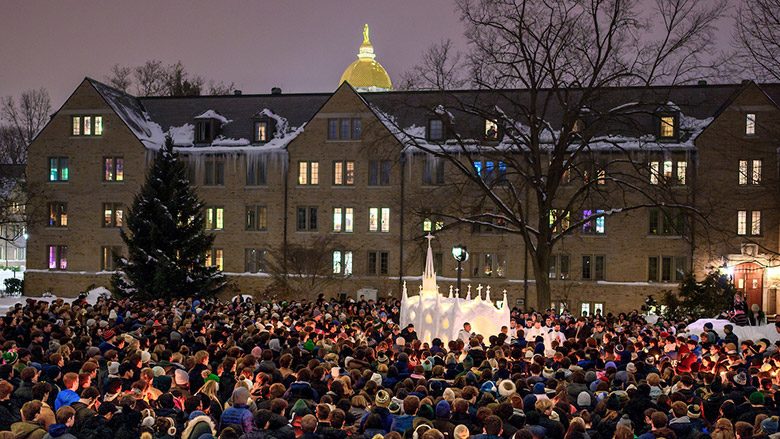

They determined to assemble a Gothic-style chapel of snow and ice that examined classes realized within the classroom, and which after completion drew about 2,500 college students to a candle-lit Mass Feb. 2, in a subfreezing temperature and with the construction because the serene backdrop.

From the outset, Wes Buonerba, who’s finding out structure and Martin Soros, a civil engineering main, handled the venture as greater than a snow sculpture. Drawing immediately from their tutorial coaching, they designed it as a simplified masonry constructing, modeled after Gothic church buildings that rely virtually completely on compression reasonably than metal or concrete reinforcement.

“It’s primarily a masonry construction,” Buonerba says. “When you have an ideal arch, all of your masonry items are in compression, and that’s very secure. That’s why church buildings had been [historically] constructed like that.”

The chapel is organized round 4 major rib arches, that are the first structural components and help the vaulting between them, transferring the load of the ice downward into the bottom. Between the ribs, Buonerba and Soros added infill partitions, small Roman-style arches for home windows and round openings paying homage to rose home windows—all carved from ice blocks.

Inside, the chapel measured roughly 15 to twenty ft lengthy, about 5 ft large and 6½ ft tall. Rising above it’s a slender spire weighing about 50 lbs and reaching about 15 to twenty ft into the air.

Studying to Improvise

Making the arches was a problem for the 2, who additionally enlisted as many as ten different pupil volunteers to assist as their time allowed.

“We had a noticed in order that we may lower the ice blocks to angle, to chamfer the perimeters so they might act extra like a voussoir and an arch,” Buonerba says. “A voussoir is simply an arch or stone block that’s been lower and barely angled so it matches alongside the profile of the arch. The keystone was the central voussoir that locks the arch in place.”

To create the constructing blocks, the scholars used recycling bins as molds, every stuffed with alternating layers of snow and water, compacted by hand and boot. The method, Soros says, carefully resembled mixing concrete.

“It’s very analogous to the water-to-cement ratio when making concrete,” he says. “In the event you put an excessive amount of snow in, the block falls aside. In the event you put an excessive amount of water in, it turns into very heavy.”

The scholar builders adjusted density of the ice blocks relying on the place they might be used. Heavier, denser blocks had been positioned decrease within the partitions, whereas lighter blocks had been used at a better stage, significantly for keystones atop arches. The strategy diminished outward forces and eradicated want for intensive buttressing.

To strengthen blocks internally, builders used a long-handled metallic ice scraper to punch vertical holes via the packed snow earlier than pouring in water. As soon as frozen, ensuing icicles acted like reinforcing bars.

“That was sort of like rebar,” Soros says. “You’ve got a stable ice core down the center.”

Short-term formwork was used to carry arches in place whereas they froze and the 2 improvised to seek out objects to adapt for that activity.

“We used something we may get our arms on,” Buonerba says. “I imply, buckets from the basement, trash cans, a automobile hood and ladders from bunk beds. It was something we may use to make this factor.”

The automobile hood supported by two ladders braced aside on the base to counteract gravity was used whereas the keystone was set.

“As quickly as we bought the keystone in, it was just about self-supporting,” Soros says.

Further small transverse arches and skinny ice partitions between the principle ribs helped lock the construction right into a inflexible system, decreasing the danger of twisting or collapse if somebody ran into it. At one level throughout development, Buonerba stood on one of many major arches whereas Soros stood on a smaller window arch, and had been thrilled when each held their weight.

The venture’s water supply was the showers of their dormitory, Zahm Corridor.

In between courses, Buonerba and Soros had been on web site practically continually, investing about 60 hours every.

The chapel rapidly grew to become a campus attraction, drawing curious college students, passersby,  volunteers and nationwide media consideration. The scholars determined to ask the college to carry a Mass on the location.

Additional-curricular Classes

The venture supplied classes past structural mechanics. For Buonerba, it bolstered his curiosity in sacred structure and hands-on constructing. For Soros, whose curiosity in civil engineering grew from volunteering on initiatives in South America and seeing the consequences of insufficient infrastructure, the chapel mirrored the satisfaction he feels in constructing one thing tangible to learn a group.

“It would seem like we had been simply youngsters taking part in within the snow,” Soros mentioned, “nevertheless it actually was making use of what we realized—primary physics, primary engineering.”

Soros volunteered final yr via NDSEED, a pupil civil engineering membership at Notre Dame that designs and builds a footbridge yearly. Final yr, as design supervisor, he labored on the entire structural calculations and drawing set, spending one and a half months in Papa Chacra in southern Bolivia bodily constructing the bridge alongside the area people.

After commencement this spring, Soros plans to go to Argentina to work at La Nazerena, a group middle in Buenos Aires that serves kids and households experiencing poverty. The middle has quite a few instructional and developmental packages.

Buonerba nonetheless has one other yr of examine at Notre Dame within the structure program, which lasts 5 years.

As for the chapel venture, Soros says to make an impactful construction “you do not want one thing spectacular or insanely ornate. We had been simply utilizing what God gave us–the snow that fell and water from showers on the primary flooring [of their dorm.]”

The scholars each take pleasure in looking their classroom home windows now to see friends and others on campus visiting the chapel, however neither is sentimental in regards to the construction’s inevitable finish.

“It served its function,” Buonerba says. “We bought to have fun Mass with 2,500 college students. It introduced folks collectively, gave numerous pleasure, and now it would soften and return to the earth.”
